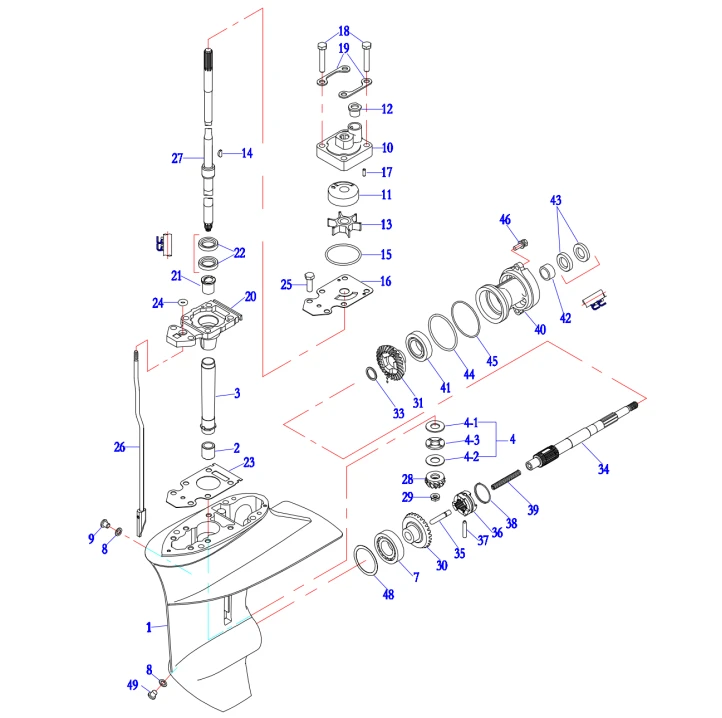

F20 Outboard Spare Parts: Underwater Unit 1
Sep 13, 2025
Ħalli messaġġ
| Calon Gloria F20 | ||||||
| Ref nru | Kodiċi materjali | Kodiċi tal-Parti | Deskrizzjoni (en) | unità | Pakkett | Yamaha |
| 1 | C253C3015529 | F20-06.00.06 | Djar taħt l-ilma | 1 | 6AH-45311-00 | |
| 2 | C3040416 | T15-06.00.17 | Bearing tal-labra F1420 | 1 | 93315-314V8 | |
| 3 | C3060436 | T15-06.00.14 | Drive Shaft Sleeve Nylon | 1 | 63V-45536-00 | |
| 4 | C3040417 | T15-06.00.18 | Ispira r-romblu ċilindriku tal-ġibda | 1 | ||
| 4-1 | Shim ta 'fuq (1.8 mm) | 1 | ||||
| 4-2 | SHIM BOLING L-BAXXA (1.2 mm) | 1 | ||||
| 4-3 | Bearing | 1 | ||||
| 7 | C3040419 | T15-06.00.23 | Romblu għax-xejn li jkollu 30205 | 1 | 93332-00005 | |
| 8 | C3090504 | T20-06.00.43 | Gasket tal-Bolt tal-Port taż-Żejt | 2 | 90430-08020 | |
| 9 | C3020540 | T20-06.00.44 | Bolt tal-port taż-żejt | 1 | 90340-08002 | |
| 10 | C3065527 | F20-06.00.10 | Pompa tal-ilma Kisi ta 'barra | 1 | 6AH-44311-00 | |
| 11 | C3070429 | T15-06.00.04 | Kisi ta 'ġewwa tal-pompa tal-ilma | 1 | 63V-44322-40 | |
| 12 | C3055550 | F20-06.00.12 | Ċirku tas-siġill tal-pajp tal-ilma t'isfel | 1 | 6L2-44367-00 | |
| 13 | C3050431 | T15-06.01.00 | Assemblea tal-Impeller tal-Pompa tal-Ilma | 1 | 63V-44352-01 | |
| 14 | C3040412 | T15-06.00.05 | Impeller tal-Pompa tal-Ilma Woodruff Key | 1 | 664-44338-00 | |
| 15 | C3055552 | F20-06.00.11 | Djar tal-pompa tal-ilma o - ċirku | 1 | 93210-49046 | |
| 16 | C3075528 | F20-06.00.01 | Pjanċa bażi tal-impeller tal-pompa tal-ilma | 1 | 68T-44323-40 | |
| 17 | C3020421 | T15-06.00.08 | Pinzjar tal-pin φ4 × 12 | 2 | 93604-12M07 | |
| 18 | C4010133 | GB / T5783 | Hex Head Bolt M8 × 45 | 4 | ||
| 19 | C3070428 | T15-06.00.01 | Pjanċa li tiffissa l-pompa tal-ilma | 2 | 63V-44328-01 | |
| 20 | C253C3015528 | F20-06.00.03 | Bażi tal-pompa tal-ilma | 1 | 69G-45331-01 | |
| 21 | C3040413 | T15-06.00.12 | Żejt tal-Bażi tal-Pompa tal-Ilma - bearing impregnated | 1 | 626-45316-09 | |
| 22 | C3050434 | T15-06.00.11 | Siġill taż-żejt tax-xaft tas-sewqan t'isfel 20 × 30 × 6 | 2 | 93101-20001 | |
| 23 | C3095526 | F20-06.00.04 | Siegla tal-bażi tal-pompa tal-ilma | 1 | 69G-45315-A0 | |
| 24 | C3050504 | T20-06.00.18 | Cam Base O - Ring | 1 | 93210-06me6 | |
| 25 | C4010171 | GB / T5783 | Hex Head Bolt M8 × 25 | 2 | ||
| 26 | C3085508 | F20-06.00.05.00-S | Shift cam rod assemblea - s | 1 | 6AH-44150-00 | |
| C3085509 | F20-06.00.05.00-L | Shift cam rod assemblea - l | 1 | 6AH-44150-10 | ||
| 27 | C3045528 | F20-06.00.02-S | Drive Shaft Assemblea - s | 1 | 6AH-45510-00 | |
| C3045529 | F20-06.00.02-L | Drive Shaft Assemblea - l | 1 | 6AH-45510-10 | ||
| 28 | C3040418 | T15-06.00.20 | Gear tas-sewqan (jew tagħmir tas-sewqan) | 1 | ||
| 29 | C3040415 | T15-06.00.21 | Sewqan tal-ġewż tax-xaft | 1 | 90179-08M06 | |
| 30 | C3040420 | T15-06.00.24 | Irkaptu 'l quddiem | 1 | ||
| 31 | C3040423 | T15-06.00.30 | Irkaptu b'lura | 1 | ||
| 33 | C3070432 | T15-06.00.29 | Washer tal-Gear Reverse | 1 | 90201-17682 | |
| 34 | C3040421 | T15-06.00.27 | Xafra tal-iskrun | 1 | 683-45611-00 | |
| 35 | C3020422 | T15-06.00.25 | Shift planger | 1 | 650-45635-00 | |
| 36 | C3040422 | T15-06.00.28 | Klaċċ tal-klieb | 1 | 682-45631-00 | |
| 37 | C3020507 | T20-06.00.27 | Pin tal-klaċċ | 1 | 90250-05010 | |
| 38 | C3080424 | T15-06.00.44 | Ċirku tar-Rebbiegħa tal-Klaċċ | 1 | 648-45633-00 | |
| 39 | C3080423 | T15-06.00.26 | Rebbiegħa tal-kompressjoni tal-planġer shift | 1 | 90501-150A0 | |
| 40 | C3010418 | T15-06.00.33 | Qoxra tad-djar taħt l-ilma | 1 | 683-45361-02 | |
| 41 | C3040424 | T15-06.00.31 | Deep Groove Ball li jkollu 6005 | 1 | 93306-00501 | |
| 42 | C3040425 | T15-06.00.34 | Labra li ġġorr 17bm2312 | 1 | 93315-317U2 | |
| 43 | C3050437 | T15-06.00.36 | Siġill taż-żejt tax-xaft tal-iskrun 17 × 30 × 6 | 2 | 93101-17054 | |
| 44 | C3050435 | T15-06.00.32 | Quddiem o - ċirku għall-qoxra tad-djar | 1 | 93210-57M09 | |
| 45 | C3050436 | T15-06.00.35 | Wara o - ċirku għall-qoxra tad-djar | 1 | 93210-56M80 | |
| 46 | C4010281 | GB / T9074.14 (BXG) | Bolt tar-ras hex b'assemblea tal-washer ċatta M6 × 20 (ħajt sħiħ) | 2 | ||
| 48 | C3070431 | T15-06.00.22 | Quddiem Gear Spacer Shim | 1 | 664-45567-01 | |
| 49 | C3020541 | T20-06.00.48 | Baxxa Bolt tal-Port taż-Żejt | 1 | ||
